ZERON 100 Super Duplex Steel Seamless Pipes

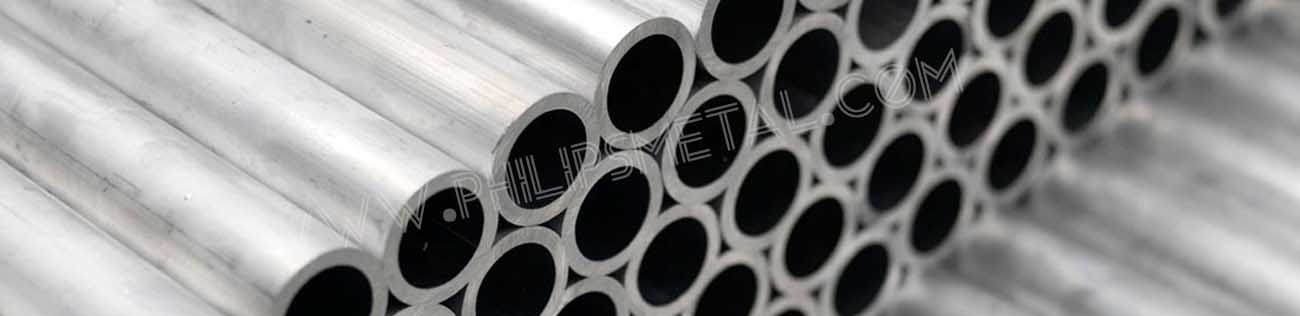

Photograph Of ZERON 100 Super Duplex Steel Seamless Pipes in Mumbai

ISO Approved Manufacturer & Exporter of ASTM A790, A789 ZERON 100 Super Duplex Steel Seamless Pipes

ASTM A790 UNS S32760 ZERON 100 werkstoff nr.1.4501 Seamless Pipes & Tubes Manufacturer, Exporter & Suppliers.

UNS S32760 Super Duplex Steel Seamless Pipes & Tubes, Welded Pipes & Tubes, ERW Pipes Suppliers in India.

ZERON 100 Super Duplex Steel Seamless Pipes

The combination of the above properties makes ZERON 100 the optimum choice in a range of industries. Oil and gas industry applications include process, seawater, firewater, and subsea pipework systems, with associated risers, manifolds, pressure vessels, valves and heat exchangers. Applications of ZERON 100 in other industries include pipework systems and associated engineering equipment for pollution control, pulp and paper, power generation, flue gas desulphurisation, chemical, pharmaceutical, desalination, mining, metallurgical and marine industries. We are also provide EQUIVALENT GRADES like DIN 1.4501, UNS S32760.

Grade DIN UNS
Zeron 100 1.4501 S32760

Specifications
UNS S32760 , (J93380 Castings), Werkstoff 1.4501 (1.4508 Castings)

  • ASME: B16.5, B16.34, B16.47, B31.3, Sec. VIII Division 1 Case 2244-2, 2245-1, Sec. III Division 1 Case N-564-2
  • ASTM: A 182 (Grade F55), A 240, A 276, A 314, A 473, A 479, A 789, A 790, A 815, A890, A 928, A 988, A 995
  • European: EN 10028-7, EN 10088-2, EN 10088-3, EN 10272, EN 10216-5, EN 10217-7 NACE: ISO 15156 / MR0175 Part 3
  • API 5LC, BSI PD 5500 � Enquiry Case 5500/87


Chemical Composition, %

Cr Ni Mo C W Cu
24.0-26.0 6.0-8.0 3.0-4.0 0.030 Max 0.5-1.0 0.50-1.0
N Mn Si P S Fe
0.2-0.3 1.00 Max 1.0 Max 0.03 Max 0.01 Max Balance

ASTM Specifications

Pipe & Tube Sheet/Plate Bar
A790, A928, A789 A240 A276

Mechanical Properties

Room Temperature, Solution Annealed Condition

Tensile Strength, ksi .2% Yield Strength, ksi % Elongation in 50mm Hardness Max.
109 80 25 28 HRC

Applications:

  • Electronics
  • Transport and traffic
  • Pulp and paper industry
  • Medicine
  • Fertilizers
  • Valve & Pumps
  • Petrochemical
  • Architecture and construction
  • Aerospace
  • Nuclear Power
  • Energy industry
  • Chemicals industry
  • Nickel Alloy in Pulp and Paper
  • Motor industry
  • Food and drink


Available Super Duplex Stainless Steel Pipes

  • Super Duplex stainless steel 2507 Seamless Pipe
  • Inconel Pipe Tubes at factory rate Super Duplex stainless steel 2507 Seamless Tube
  • Inconel Pipe Tubes at factory rate Super Duplex stainless steel 2507 Welded Pipe
  • Inconel Pipe Tubes at factory rate Super Duplex stainless steel 2507 Welded Tube
  • Inconel Pipe Tubes at factory rate Super Duplex stainless steel pipe


Type Of Super Duplex Stainless Steel Pipes

Stainless Duplex Steel Pipe A789 S32750 SAF2507 SA789 S31803 SAF2205
2 Inch ASTM A789 S32750 F60 Seamless Duplex Pipe 60.3mm Outer Diameter PED ASME SA789 Duplex Steel Pipe , Duplex Stainless Steel 2205 For Mechanical Structure Industry

Stainless Duplex Steel Pipe A789 S32750 SAF2507 SA789 S31803 SAF2205

2 Inch ASTM A789 S32750 F60 Seamless Duplex Pipe 60.3mm Outer Diameter

PED ASME SA789 Duplex Steel Pipe , Duplex Stainless Steel 2205 For Mechanical Structure Industry

2507 / 1.4462 Duplex Steel Pipe With Cold Drawn Method / Annealing

ISO 9001 F51 Seamless Duplex Stainless Steel Pipe For Structure And Machining

Customized ASTM A790 Duplex Steel Pipe With Fixed Length And Cold Drawn Method

2507 / 1.4462 Duplex Steel Pipe With Cold Drawn Method / Annealing

ISO 9001 F51 Seamless Duplex Stainless Steel Pipe For Structure And Machining

Customized ASTM A790 Duplex Steel Pipe With Fixed Length And Cold Drawn Method


ZERON 100 Super Duplex Steel Seamless Pipes | ZERON 100 Super Duplex Steel Seamless Pipes Ready Stock| ZERON 100 Super Duplex Steel Seamless Pipes Suppliers | ZERON 100 Super Duplex Steel Seamless Pipes stockist | ZERON 100 Super Duplex Steel Seamless Pipes Exporters | ZERON 100 Super Duplex Steel Seamless Pipes Manufacturers | ZERON 100 Super Duplex Steel Seamless Pipes Price | ZERON 100 Super Duplex Steel Seamless Pipes distributors


If you are looking for a trusted and reliable supplier of ZERON 100 Super Duplex Steel Seamless Pipes then call PHILIPS METAL INDUSTRIES today on +91-22-2382 0045 / 46, Email: shah@philipsmetal.com
